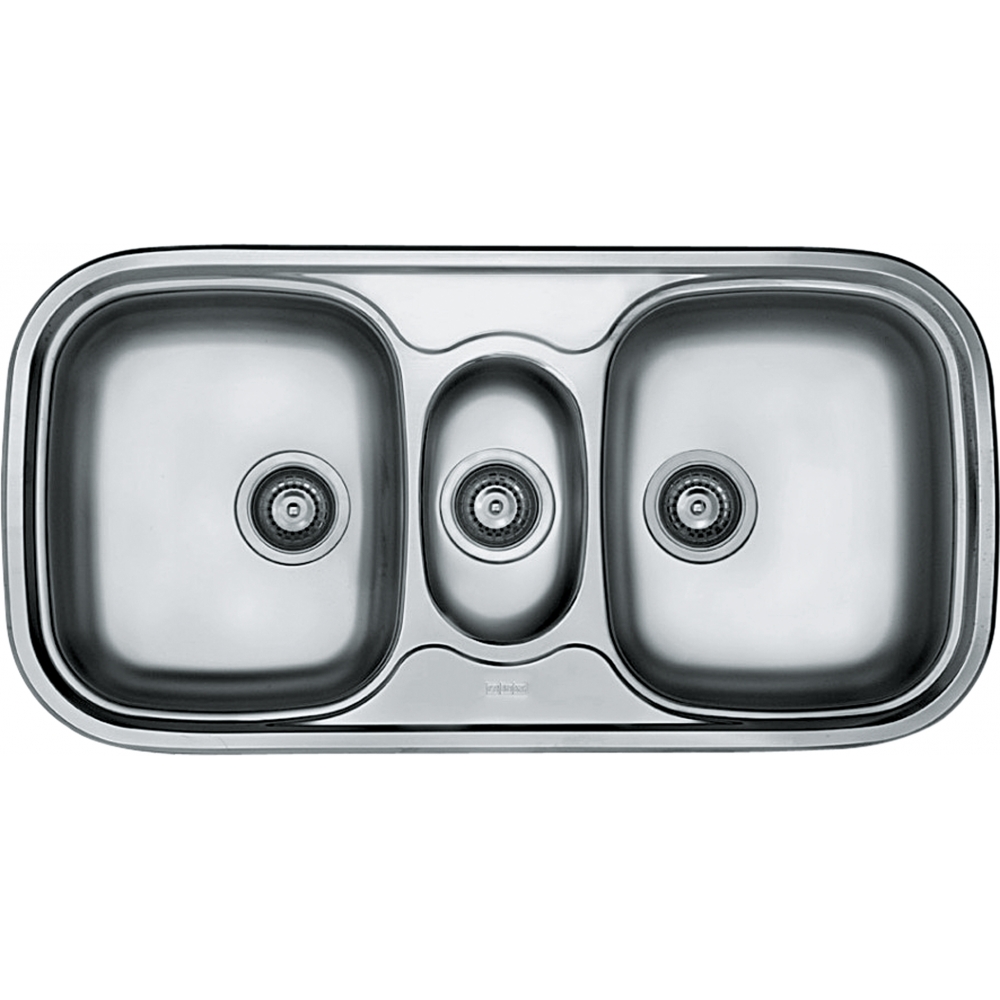

Quinline QLX670

Sink type Bowl (no drainer)

Type of material Stainless steel

Number of bowls 2,5

Color Steel

Finish Brushed

Properties

Drainers number No drainer

Product reversibility yes

Tap ledge Yes

Waste kit included yes

Waste kit type manual

Siphon included no

Number of tap holes None

Soap dispenser hole no

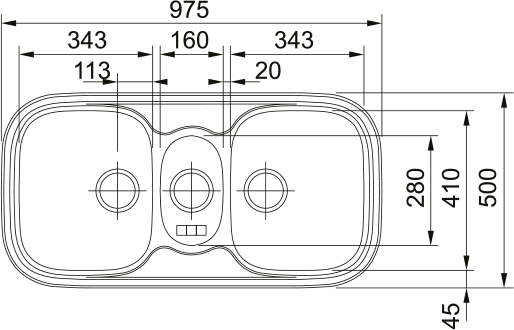

Dimensions

External size: right to left 970 mm

External size: front to back 500 mm

Bowl 1 size: right to left 343 mm

Bowl 1 size: front to back 410 mm

Bowl 1: depth 165 mm

Bowl 2 size: right to left 160 mm

Bowl 2 size: front to back 280 mm

Bowl 2: depth 139 mm

Cutout inset: right to left 951 mm

Cutout inset: front to back 476 mm

Installation

Minimum cabinet size 100 cm

Product identification

Product brand FRANKE

Product family None

Model range Quinline

Product specifications

Installation type Inset

Waste outlet 3 1/2"

Position of drainer No drainer

Active Twist Compatibility No

Weight	4.5 kg
Dimensions	997x532x165
Shipping Class	Standard
